5-Axis CNC Machining: High-Precision Solutions

In modern manufacturing, the demand for high-precision parts with complex geometries continues to rise. 5-axis CNC machining has emerged as the optimal solution, enabling manufacturers to achieve tighter tolerances, smoother surface finishes, and fewer setup requirements. Compared with conventional 3-axis and 4-axis machining, 5-axis technology offers greater flexibility and production efficiency. Join THACO INDUSTRIES to gain deeper insights into 5-axis machining and the value it delivers to global industries.

What is 5-Axis CNC Machining? – Key Features and Precision Advantages

5-axis CNC machining refers to a manufacturing process where the cutting tool moves simultaneously along five independent axes. This mechanism enables the production of highly complex geometries, reduces repositioning, and increases flexibility in machining. It represents a significant advancement in precision engineering, particularly for components requiring intricate contours, undercuts, and compound angles.

Compared with 3-axis and 4-axis machining, 5-axis technology offers clear advantages. While 3-axis systems are limited to flat surfaces, linear toolpaths and 4-axis adds rotation on a single axis, offering more flexibility but still requires multiple setups, 5-axis machining allows access to the workpiece from multiple angles. This minimizes repositioning, saves production time, and reduces the risk of tolerance deviation caused by repeated setups.

Beyond process efficiency, 5-axis CNC machining ensures superior quality. Finished parts achieve smoother surfaces, accommodate undercut features, and maintain tighter tolerances. At the same time, the reduced need for manual intervention enhances automation and repeatability. For these reasons, 5-axis machining has become an indispensable solution for industries that demand high precision, reliability and scalable production capacity.

Types of 5-Axis CNC Machining Operations

5-axis CNC machining is not limited to a single operation but includes a range of operations tailored to different materials and levels of part complexity. This diversity provides a major advantage, enabling manufacturers to flexibly meet a wide range of technical requirements in modern production.

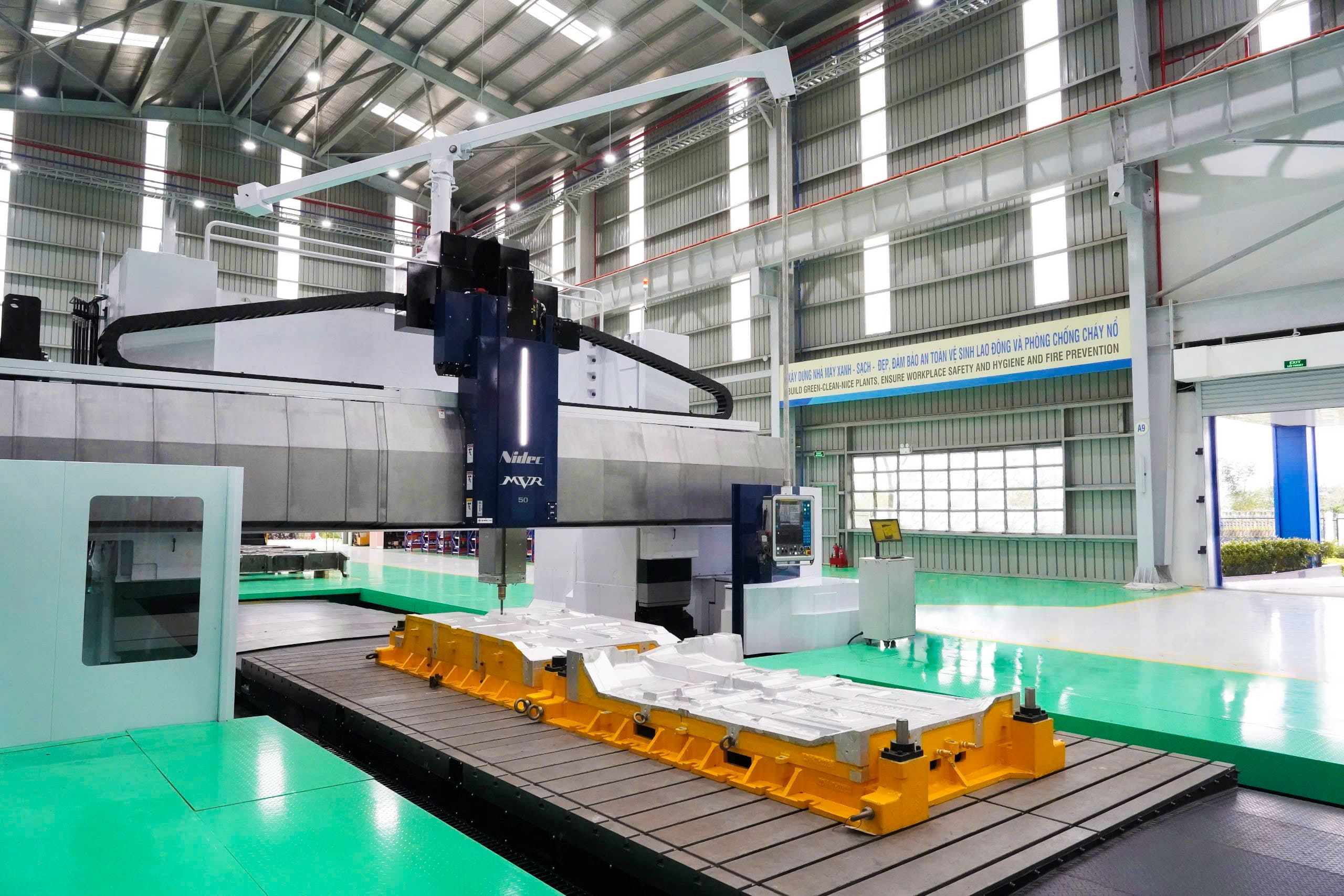

Milling and Complex Surface Machining

One of the most important applications is multi-axis milling and complex 3D surface machining. 5-axis technology allows the creation of curved shapes and intricate contours in a single setup, saving time while enhancing accuracy. Typical products include turbine blades, molds, dies, and medical implants – all requiring high precision and superior surface quality.

Turning and Multi-Axis Drilling

5-axis technology can integrate turning with simultaneous drilling at complex angles, reducing the need for re-clamping and improving accuracy. This makes the production of cylindrical parts with intricate features more efficient and consistent, especially in large-scale manufacturing, where precision and cycle-time efficiency are critical

Specialized Applications for Complex Parts

Beyond these common methods, 5-axis CNC machining is also highly effective for specialized applications. Aerospace impellers, automotive engine components, and electronic housings are prime examples of products that demand both high precision and complex geometries. This flexibility is a key advantage that traditional machining methods cannot easily achieve.

Applications of 5-Axis CNC Machining

5-axis CNC machining delivers significant value across multiple industries thanks to its ability to handle complex parts with exceptional precision. From aerospace and automotive to industrial equipment and electronics, this technology enhances reliability, optimizes performance, and meets the strictest standards of modern manufacturing.

Aerospace and Automotive Components

In aerospace, critical components such as turbine blades, structural elements, and landing gear require high load resistance and absolute precision to ensure flight safety.

Similarly, in the automotive industry, 5-axis CNC machining is applied to engine blocks, transmission systems, and high-performance parts, and to structural elements such as truck chassis frames, where precision and strength are essential to ensure safety and durability on the road.

Typical applications:

  • Turbine blades
  • Aerospace structural parts
  • Landing gear components
  • Engine blocks
  • Transmission systems
  • High-performance automotive parts

Industrial Equipment and Machinery Parts

5-axis machining plays a crucial role in producing heavy-duty industrial components, extending service life and reducing operational risks. With higher accuracy and stability, this technology helps minimize downtime, improve efficiency, and lower maintenance costs for manufacturers.

Typical applications:

  • Industrial machine frames
  • Gear housings
  • Heavy-duty components

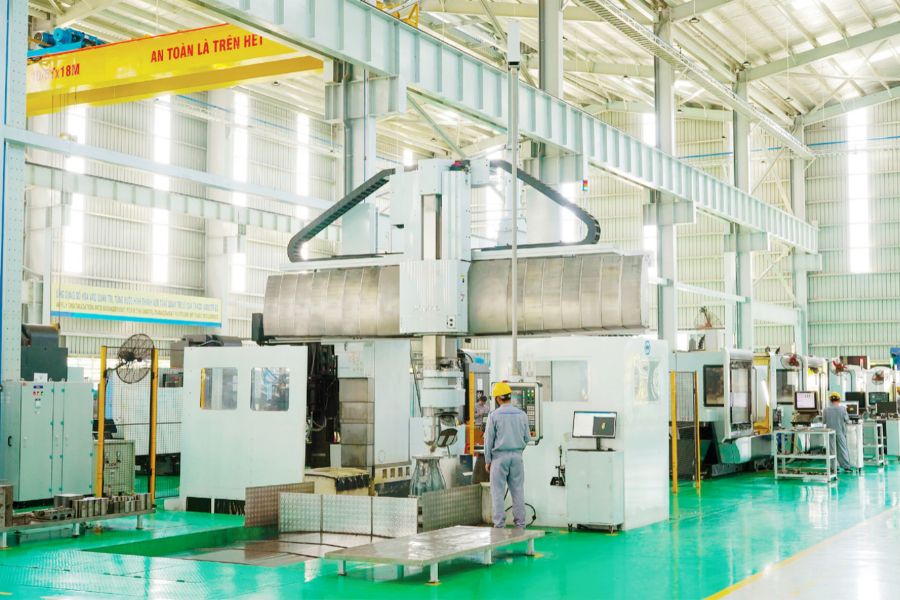

Electronics and High-Precision Components

The electronics industry is moving rapidly toward miniaturization and greater component complexity. 5-axis CNC machining enables the production of ultra-small, highly intricate parts with micrometer-level precision, addressing miniaturization needs while maintaining product reliability.

Typical applications:

  • Heat sinks
  • Electronic housings
  • Micro-connectors requiring high accuracy

Benefits of Choosing 5-Axis CNC Machining

Beyond its technical superiority, 5-axis CNC machining also brings significant business advantages. Companies can ensure exceptional quality while optimizing costs, shortening production time, and improving responsiveness to market demands. This creates a sustainable competitive edge in today’s manufacturing landscape.

High Precision and Tolerance

5-axis technology enables ultra-tight tolerances and stable repeatability, ensuring that every component fits perfectly during assembly. This minimizes the risk of dimensional errors while enhancing product reliability and overall quality.

Key benefits:

  • Achieve extremely tight tolerances with consistent repeatability
  • Reduce the risk of dimensional inaccuracies
  • Ensure perfect and consistent part fitment

Reduced Production Time and Costs

By eliminating multiple setups, 5-axis machining minimizes downtime and streamlines production schedules.. Companies can also reduce labor and tooling costs while lowering material waste through minimized rework and scrap.

Key benefits:

  • Less downtime thanks to fewer setups
  • Lower labor and tooling expenses
  • Reduced rework, scrap, and material waste

Flexibility for Complex Designs

5-axis CNC machining is ideal for prototypes, customized parts, and innovative designs. With the ability to handle diverse geometries, this technology enables faster response to customer needs and accelerates new product development.

Key benefits:

  • Efficiently produce prototypes and customized parts
  • Support complex and innovative design requirements
  • Shorten R&D cycles and speed up time-to-market

Selecting the Right 5-Axis CNC Machining Supplier

The choice of a 5-axis CNC machining supplier directly determines product quality, delivery lead times, and overall project outcomes. For industrial buyers, evaluating suppliers carefully is essential to ensure both technical performance and business reliability.

Evaluation Criteria for Industrial Buyers

 Selecting a supplier goes beyond technical capability, it requires proven scalability, certification, and experience.

Key criteria to consider:

  • International certifications: ISO 9001 for quality management systems, IATF 16949 for the automotive industry, AS9100 for aerospace, or ISO 13485 for medical devices. These certifications are strong evidence of compliance with global standards.
  • Quality management systems: Implementation of tools such as PPAP, FMEA, SPC, and MSA to mitigate risks; clear traceability systems for raw materials and finished products.
  • Production capacity and scalability: Adequate factory size, availability of advanced 5-axis machines, and the ability to increase capacity to handle high-volume or urgent orders.
  • International experience: Proven track record in exports, familiarity with global trade regulations (e.g., REACH, RoHS, IMDS), and capability to serve demanding markets such as Europe, the U.S., and Japan.

Technology, Experience, and Reliability

Advanced technology is the foundation for ensuring quality in 5-axis machining. A reliable supplier should operate advanced machinery integrated with next-generation CAM software to optimize tool paths and shorten programming time. This capability enhances productivity, precision, and consistency throughout the manufacturing process.

Alongside technology, an experienced team of engineers is the key factor that determines project execution efficiency. Engineers with a deep understanding of international standards and technical requirements in industries such as automotive, aerospace, or medical devices help minimize errors and ensure that products meet specifications from the very beginning.

Another critical criterion is a proven track record and verified reliability. A supplier with experience in successfully completing complex projects, delivering on time, and meeting the stringent international standards provides partners with peace of mind. This serves as the clearest evidence of capability and a strong commitment to long-term collaboration.

Partner with THACO INDUSTRIES for 5-Axis CNC Machining Solutions

As Vietnam’s leading corporation in mechanical engineering and supporting industries, THACO INDUSTRIES affirms its position as a trusted provider of CNC machining services. The corporation meets the growing demand for precision, flexibility, and compliance with international standards by continuously investing in advanced technology and robust quality management systems to deliver optimal solutions for every project.

Key reasons why THACO INDUSTRIES is the preferred choice of international clients:

  • Advanced 5-axis machinery and modern production facilities
  • International ISO certifications ensure compliance with global quality standards
  • Scalable capacity to handle both small-batch orders and large-volume projects
  • Proven experience in collaborating with global partners across automotive, industrial, and energy sectors

With its combination of cutting-edge technology, global certifications, and extensive industry experience, THACO INDUSTRIES is ready to become a strategic partner for your business. Connect with us today for tailored 5-axis CNC machining solutions, new project development, and long-term collaboration.
